Titan LT

The new Titan LT provides a 40lb+ payload, IP65 waterproof rating and infinite 360 pan/roll spin making the Titan LT the new leader in compact stabilized remote head systems.

operator required

Titan LT

The Titan LT features a 20% larger build volume and 3.5x more peak torque than Ronin2, plus an IP65 weather rating allows you to fly almost any camera and lens combination in any conditions.

The new slip ring design allows the Titan LT allows infinite 360 pan and roll helping you create shots unachievable in the past.

The Titan LT is built for all remote head supports like MotoCrane arms, Black arms, Cable cams, Technocranes, Dollies/jibs, RC cars and even Handheld. The choice is yours!

‍

Key Features

Intigrated FIZ system into XL controller

Infinite 360 Roll and Pan

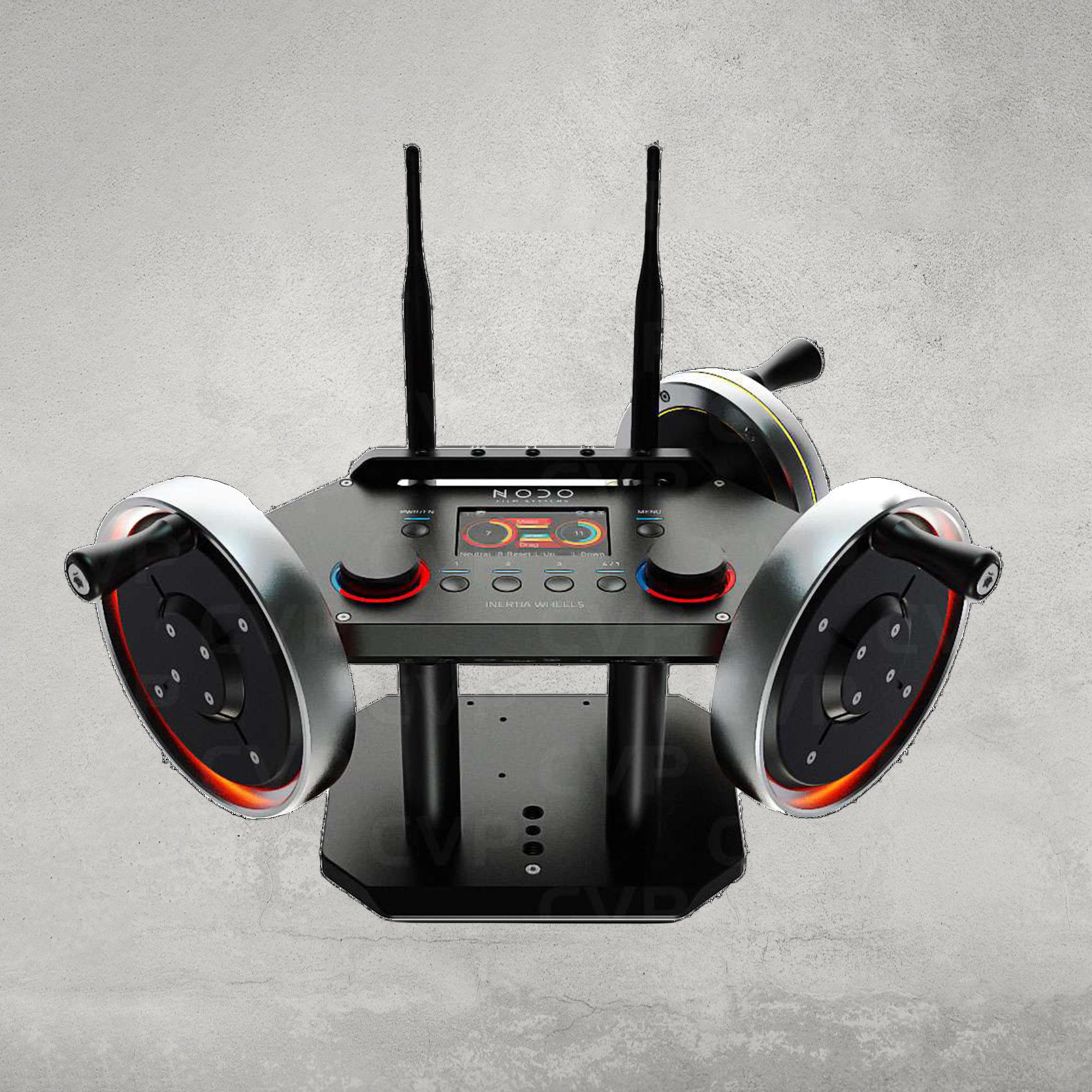

Nodo Wheels Integration

24v or 14.4v Power Supply

Dual Stick or Single Stick/Focus Wheel

Infinite 360 pan and roll
24v and 14.4v power supply
IP65 water rating
Compatible with Nodo Wheels
XL controller with integrated 3 channel FIZ
Mitchell Mount option for any Mitchell based system
TB50 or Block Battery options
Gimbal Ports -> 12G SDI, 26V Power, 3x 14.4V 2pin, CAM, FIZ Motors

Titan LT Remote Head
XL controller with Dual Stick or Single Stick/Focus Wheel
3x Motors for Focus, Iris, Zoom
2x Batteries
12x TB50 Batteries
Mitchell and QuickRelease System
Power Cables

Construction: 6061-T6 Aluminum chassis
Maximum operational speed: 130+ mph
Max Pan motor torque: 10Nm
Max Pan speed: 360º/sec
Payload Capacity: 40lbs/18kg
Dry Weight: 18lbs/8.2kg
Weather rating: IP65 (water resistant)
Temperature rating: -30ºF - 120ºF
Gimbal Mounting: Mitchell mount adapter, LT Quick Disconnect
Payload mounting: DJI R2 Dovetail/Baseplate
Camera build volume: 270mm (L) x 225mm (W) x 236mm* (H)
