RED's 6K global shutter camera with twice the frame rates of the original Komodo, in a body small enough for gimbals, drones and car rigs.
RED Komodo-X
operator required

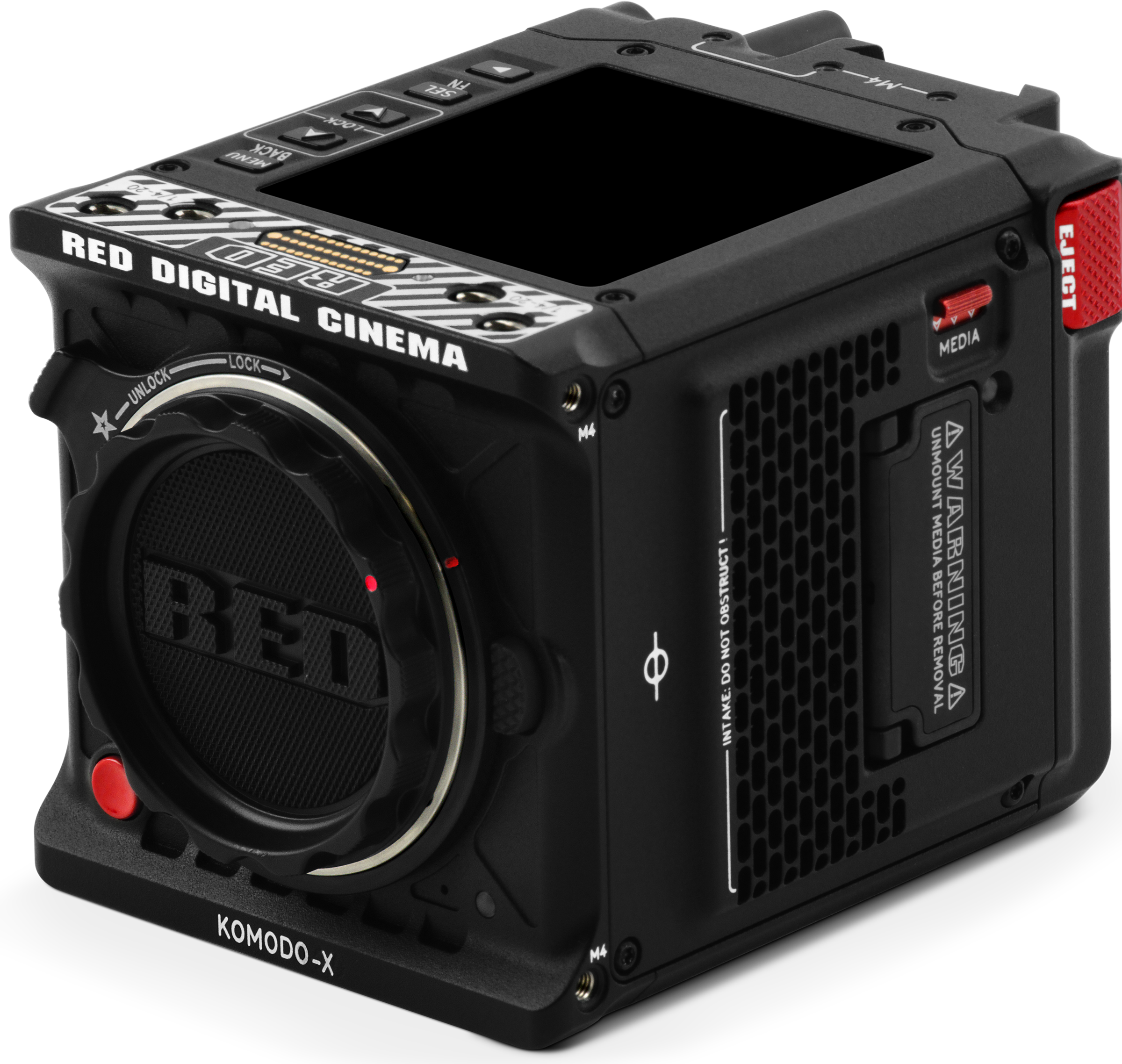

RED Komodo-X

The RED Komodo-X puts a 6K Super 35 global shutter sensor in a compact 1.19 kg body. Whip pans, car rigs and LED walls come out with no rolling-shutter skew, and it records 6K up to 80 fps and 4K up to 120 fps.

It shoots REDCODE RAW or Apple ProRes to CFexpress Type B, runs off a built-in Micro V-Lock plate, and has 12G-SDI, timecode, genlock and locking audio on the body. Small enough for a gimbal, solid enough for a full A-camera build.

Key Features

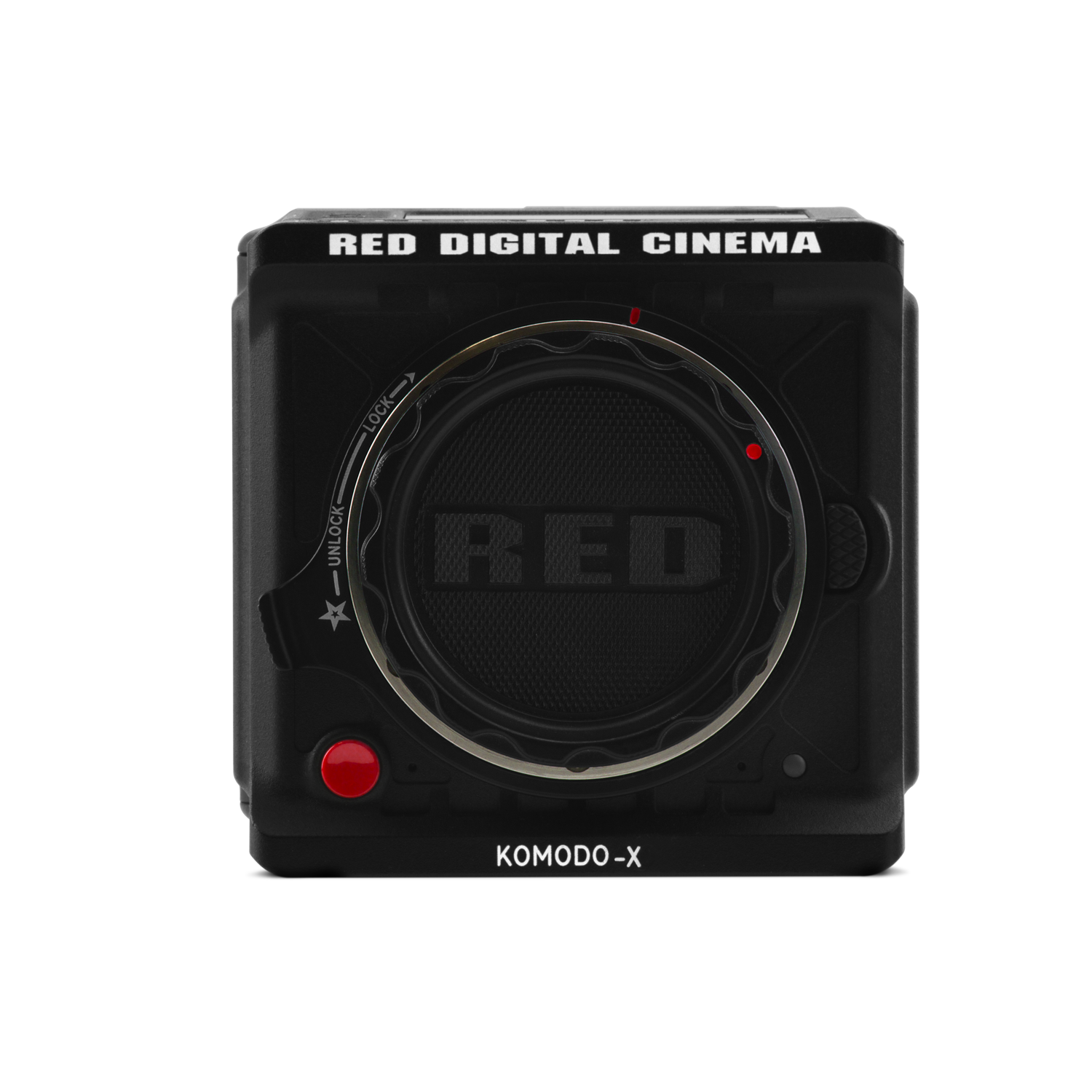

6K Super 35 Global Shutter Sensor
6K Super 35 Global Shutter Sensor

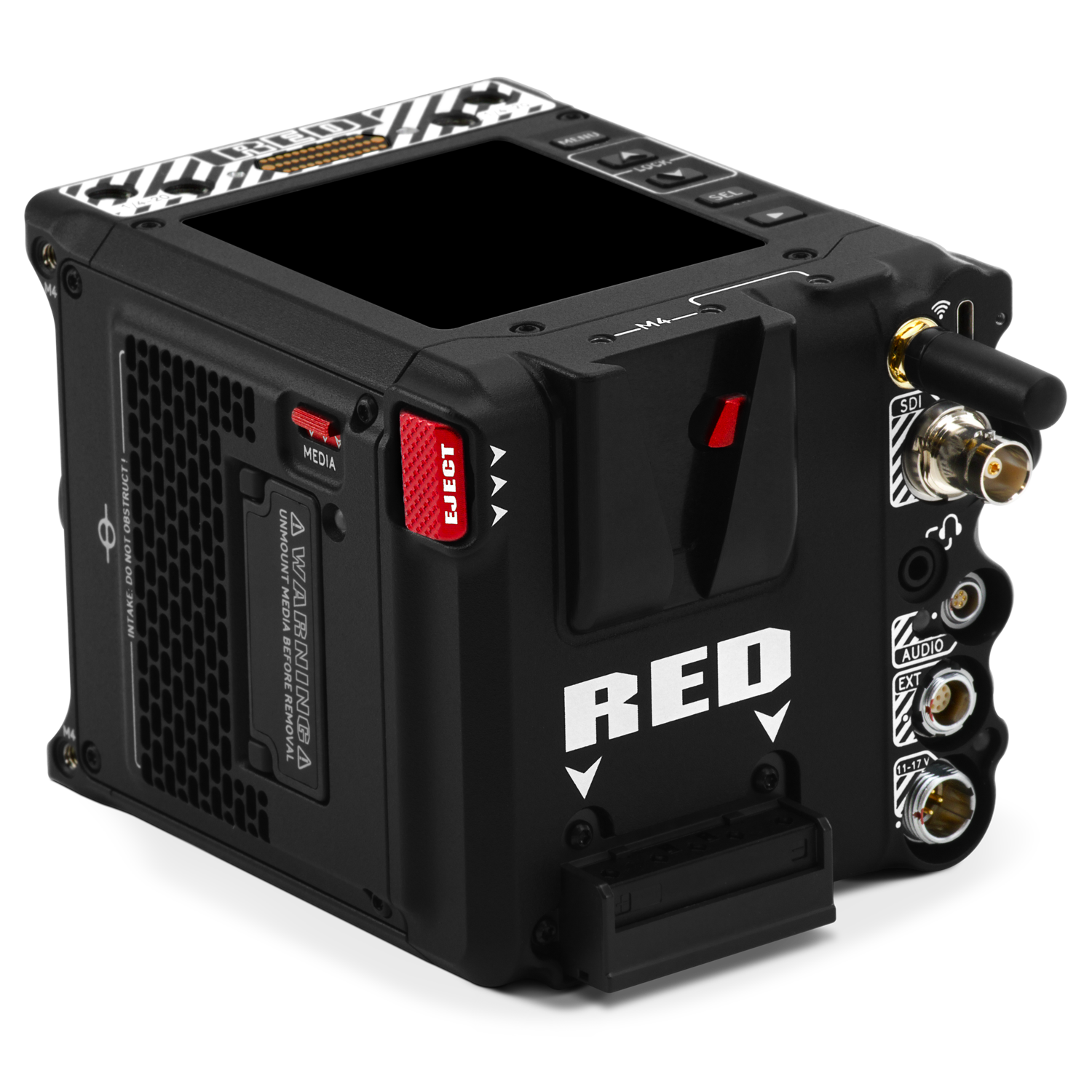

6K at 80 fps, 4K at 120 fps
6K at 80 fps, 4K at 120 fps

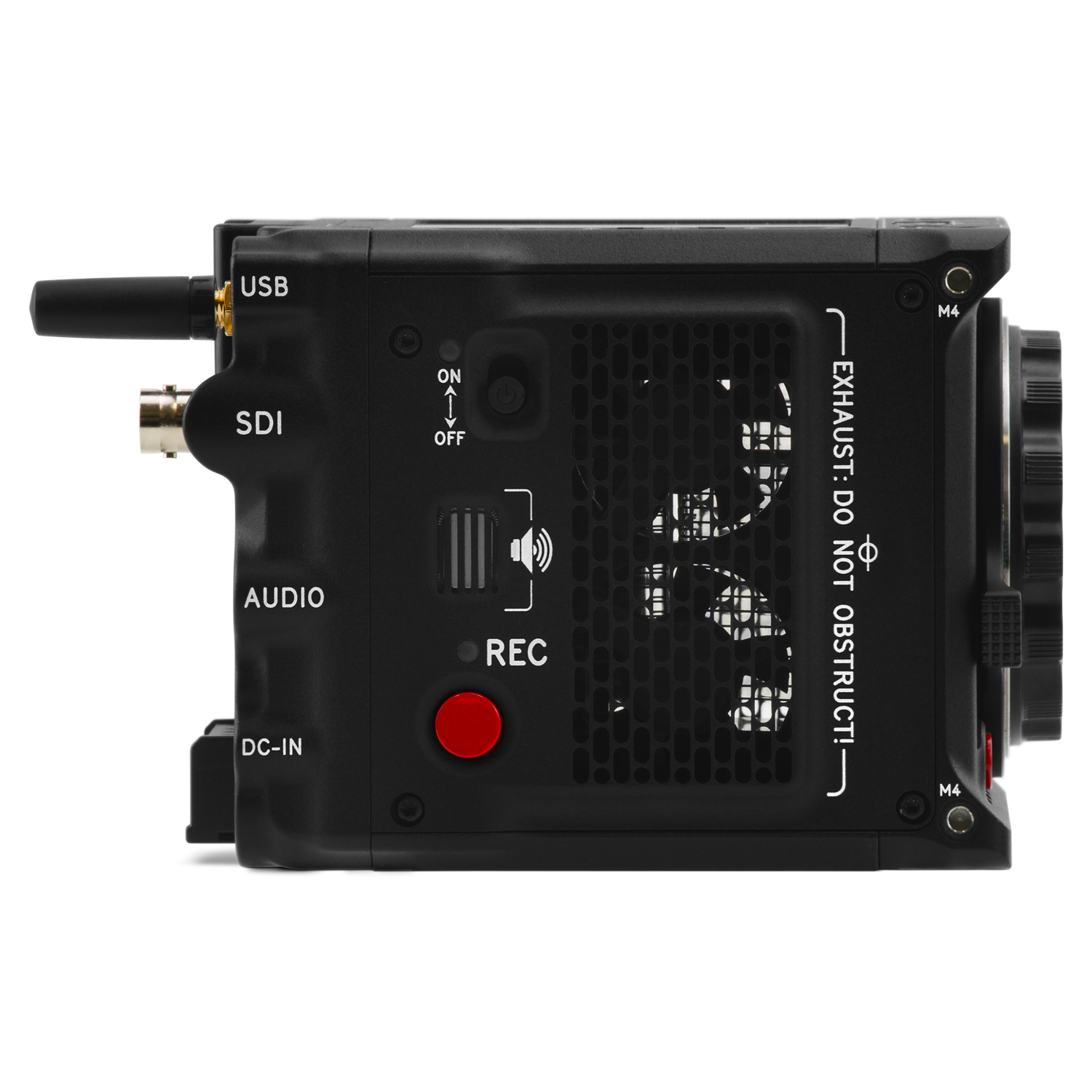

REDCODE RAW and ProRes to CFexpress
REDCODE RAW and ProRes to CFexpress

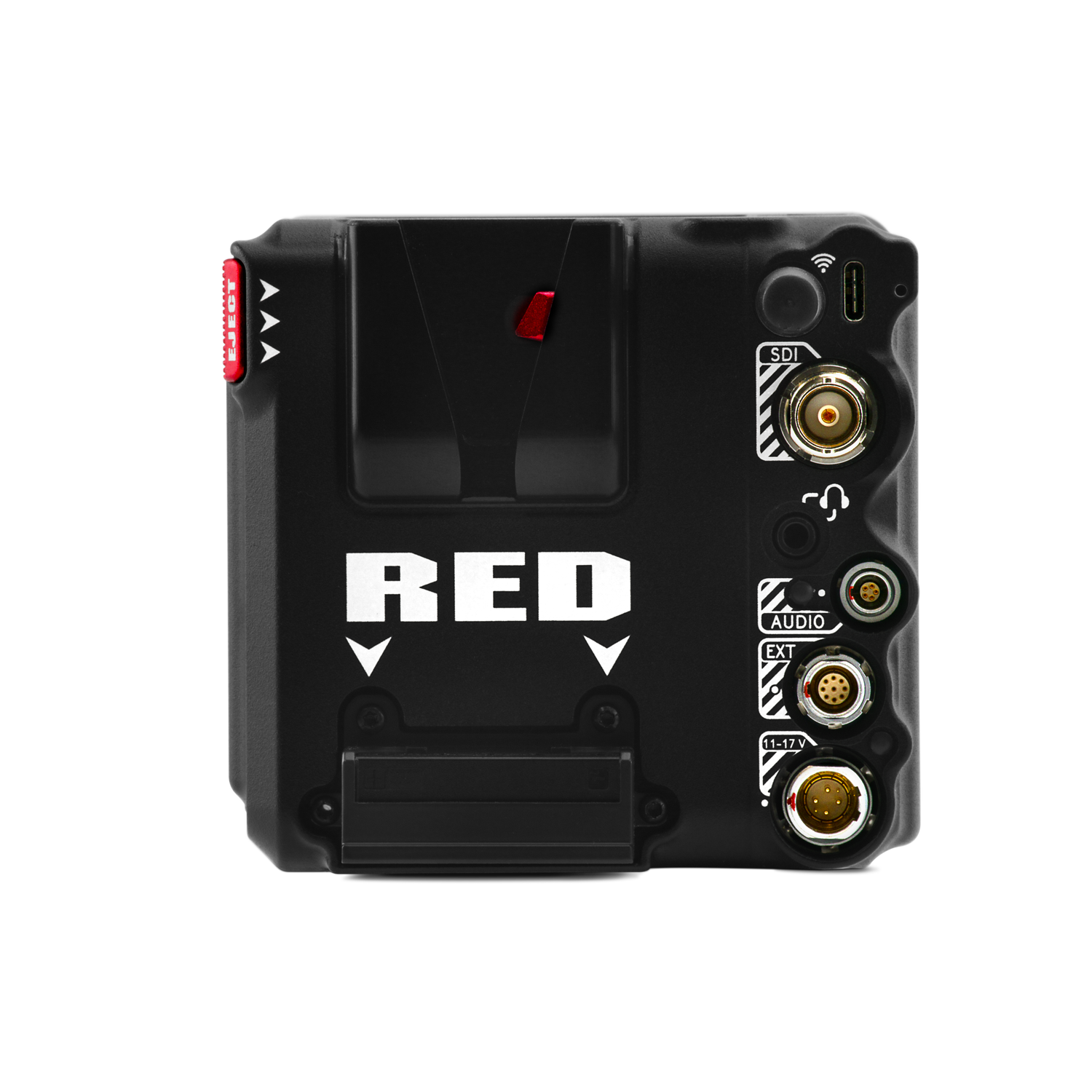

12G-SDI, Genlock, Timecode and Wi-Fi
12G-SDI, Genlock, Timecode and Wi-Fi

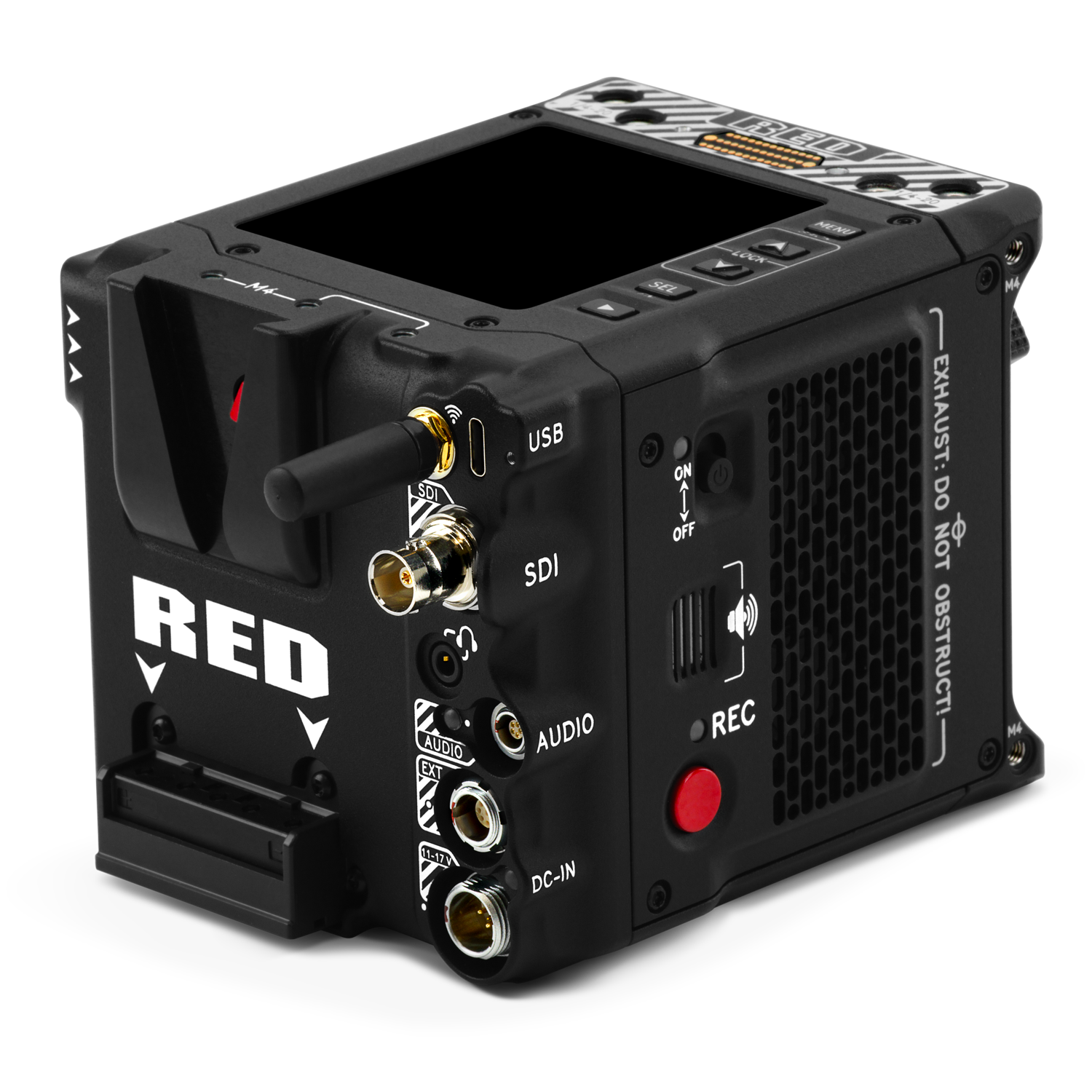

Built-in Micro V-Lock Power
Built-in Micro V-Lock Power

The Komodo-X is the second-generation Komodo. The sensor is the same size but redesigned for cleaner shadows and better colour, and it runs twice the frame rates of the original. Footage drops straight into RED's IPP2 colour pipeline, so it cuts cleanly with other RED cameras.

The body is built for working sets: a locking lens mount with full lens communication (PL glass through RED's adapter), a 2.9" touchscreen on top, support for the RED Touch 7" monitor, and a 5-pin audio input with phantom power. Wi-Fi and USB-C let you run the camera from a phone or tablet with RED Control.

It's a strong pick for gimbal, drone and vehicle work, VFX plates, and any shoot with fast motion or LED lighting where a global shutter matters.

Contact us for the full kit list.

  • Sensor: 6K Super 35 global shutter CMOS, 19.9 MP (27.03 x 14.26 mm)
  • Max Resolution: 6144 x 3240 (6K 17:9)
  • Frame Rates: 6K up to 80 fps, 5K up to 96 fps, 4K up to 120 fps, 2K up to 240 fps
  • Dynamic Range: 16.5+ stops (RED rating)
  • Recording: REDCODE RAW (HQ, MQ, LQ, ELQ); Apple ProRes 4444 XQ, 4444, 422 HQ, 422, 422 LT (4K)
  • Media: CFexpress Type B, up to 560 MB/s
  • Lens Mount: Locking mount with lens communication; PL lenses via RED adapter
  • Monitor: Built-in 2.9" 1440 x 1440 touchscreen; supports RED Touch 7" LCD
  • Video Out: 12G-SDI
  • Audio: 2-channel mic/line/+48V via 5-pin input; built-in mics; 3.5 mm headphone out
  • Sync & Control: Genlock, timecode in, RS232 (9-pin EXT)
  • Connectivity: Wi-Fi (2.4/5 GHz), USB-C for control and offload
  • Power: Built-in Micro V-Lock plate; 6-pin DC-IN, 11–17 V
  • Weight & Size: 1.19 kg (2.62 lb) body only; 129 x 101 x 95 mm
