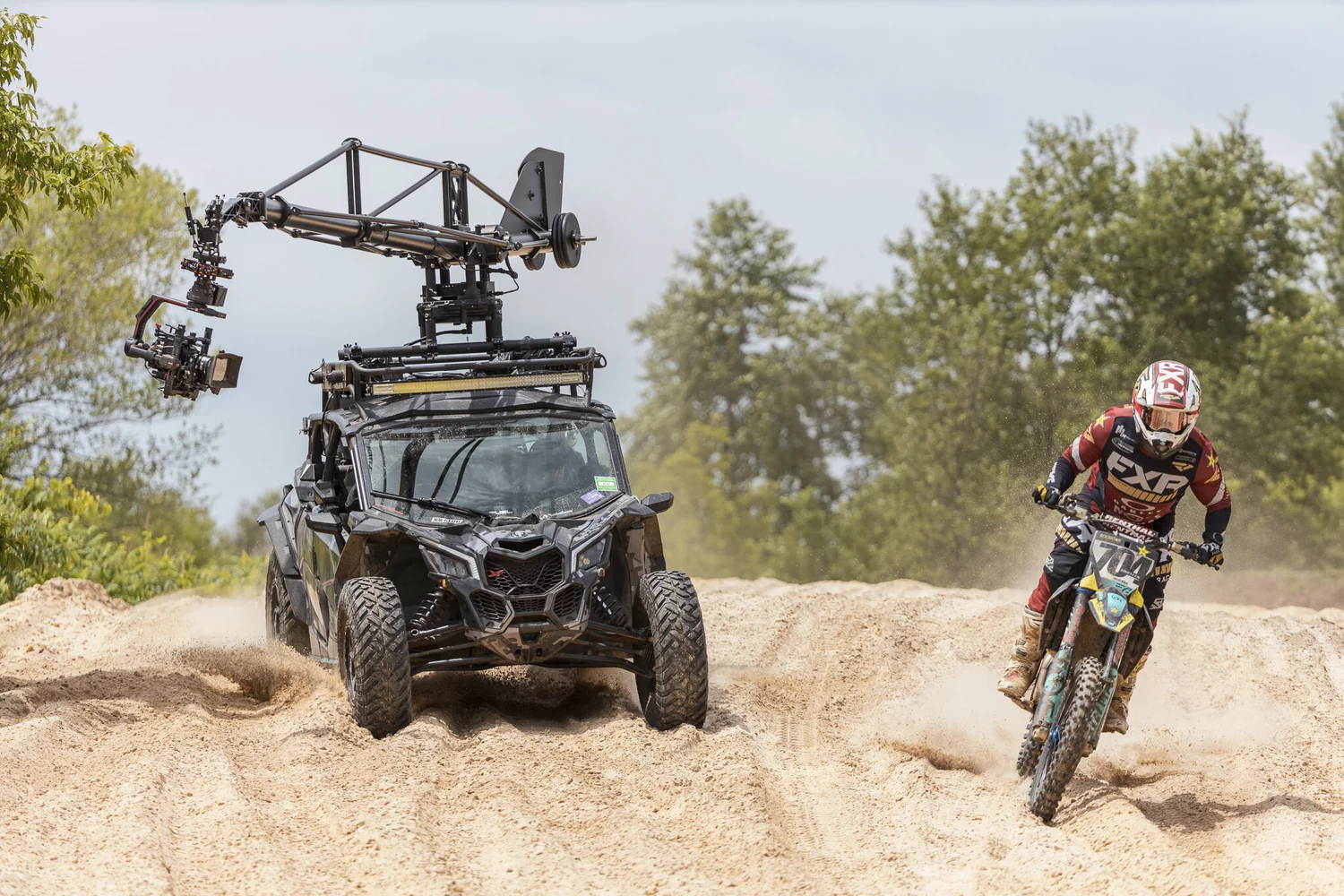

The Motocrane Radical on our Can-Am Maverick RR Turbo: the most capable off-road arm car available.
operator required

Motocrane Radical Arm Car

Our Can-Am Maverick RR Turbo x Motocrane Radical gives crews the highest level of off-road capability available for an arm car system, filming in locations too rough for standard vehicles.

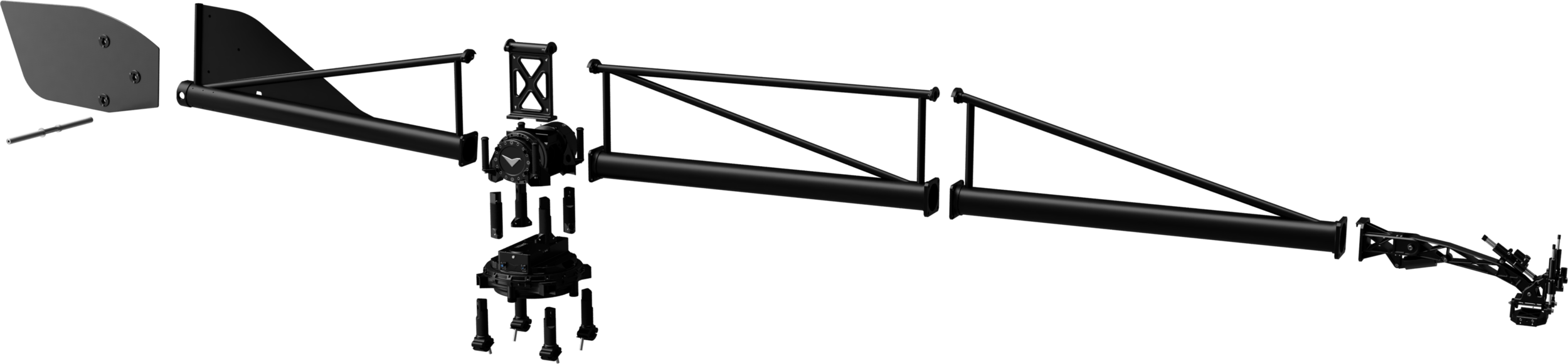

The Radical has a 12 ft boom and carries up to 45 lb with the HEAVYLIFT kit. It is paired with the Titan LT remote head for camera packages up to 40 lb.

Key Features

Built for Extreme Off-Road
45 lb Payload with HEAVYLIFT
Modular Flight Case Set
INS 2 Gyro Stabilization
COMMAND Console Control

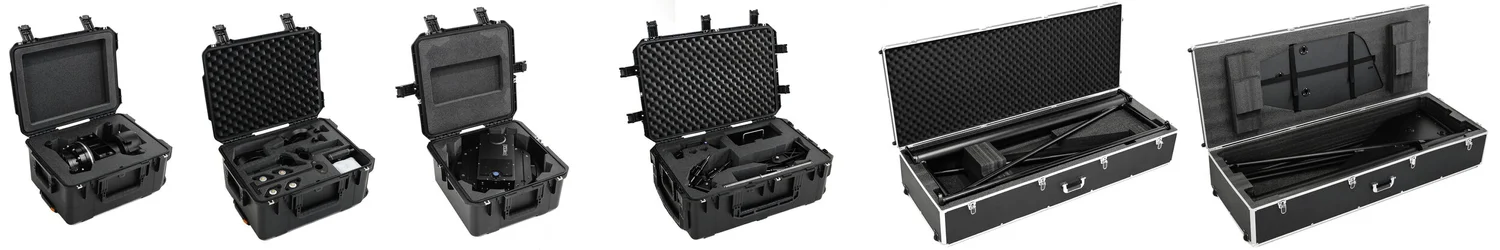

MotoCrane Radical was designed from the ground up to excel on rough terrain, at high speed and even on the water. Its modular, lightweight build packs into a set of flight cases that each weigh under 70 lb, and it mounts to cars, trucks, UTVs and boats with industry-standard 1-1/2" TUV-certified speed rail clamps.

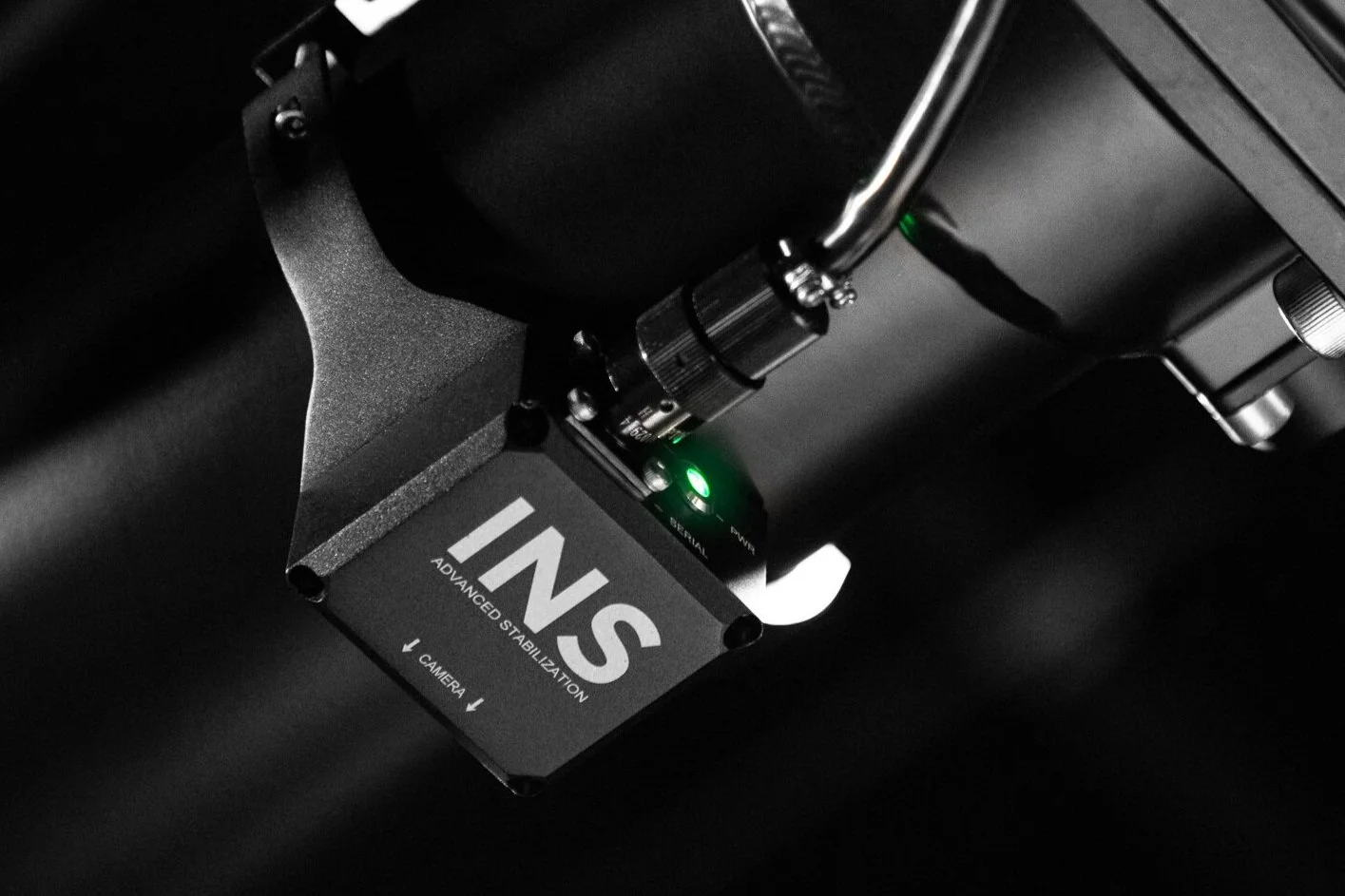

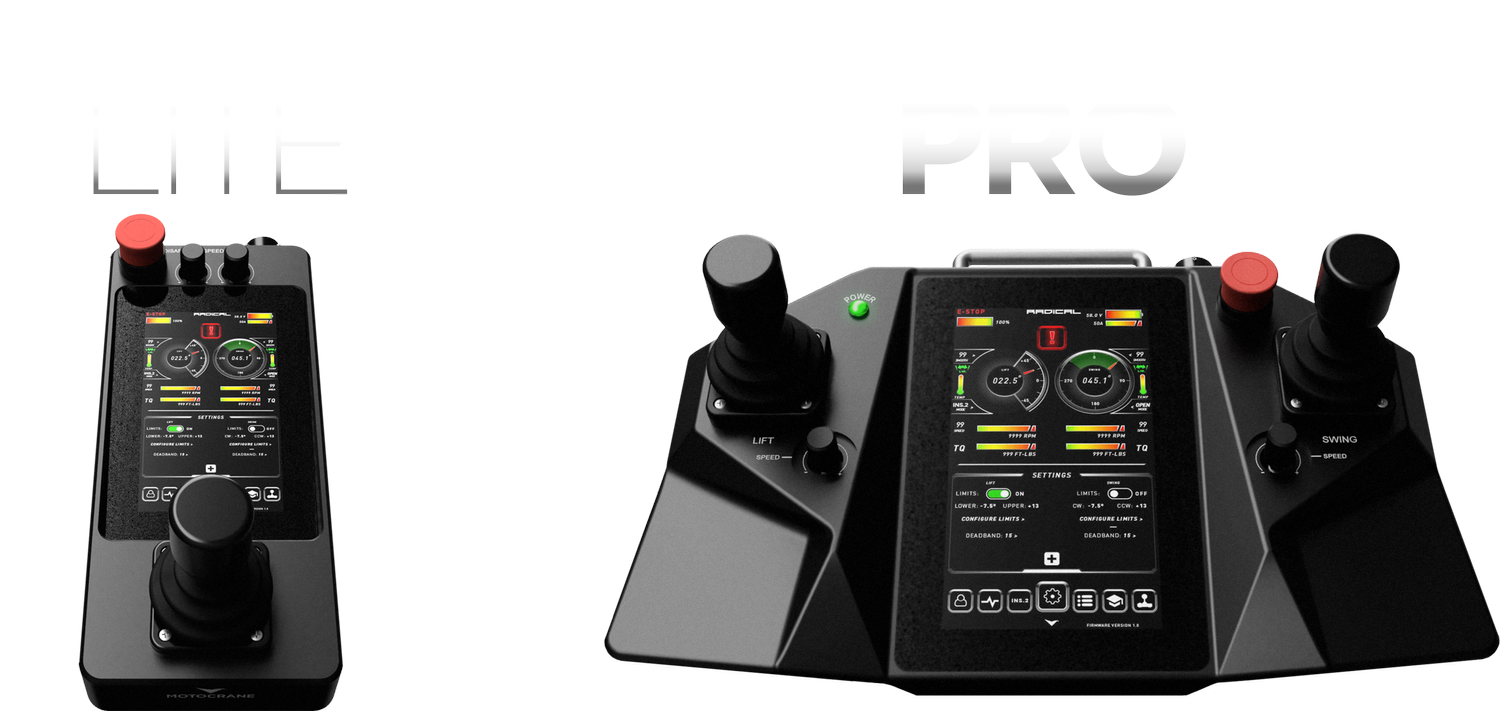

INS 2 Advanced Stabilization holds the Lift-axis angle so the lens floats over terrain with the subject, and the full-colour COMMAND Console gives the operator precise, responsive control.

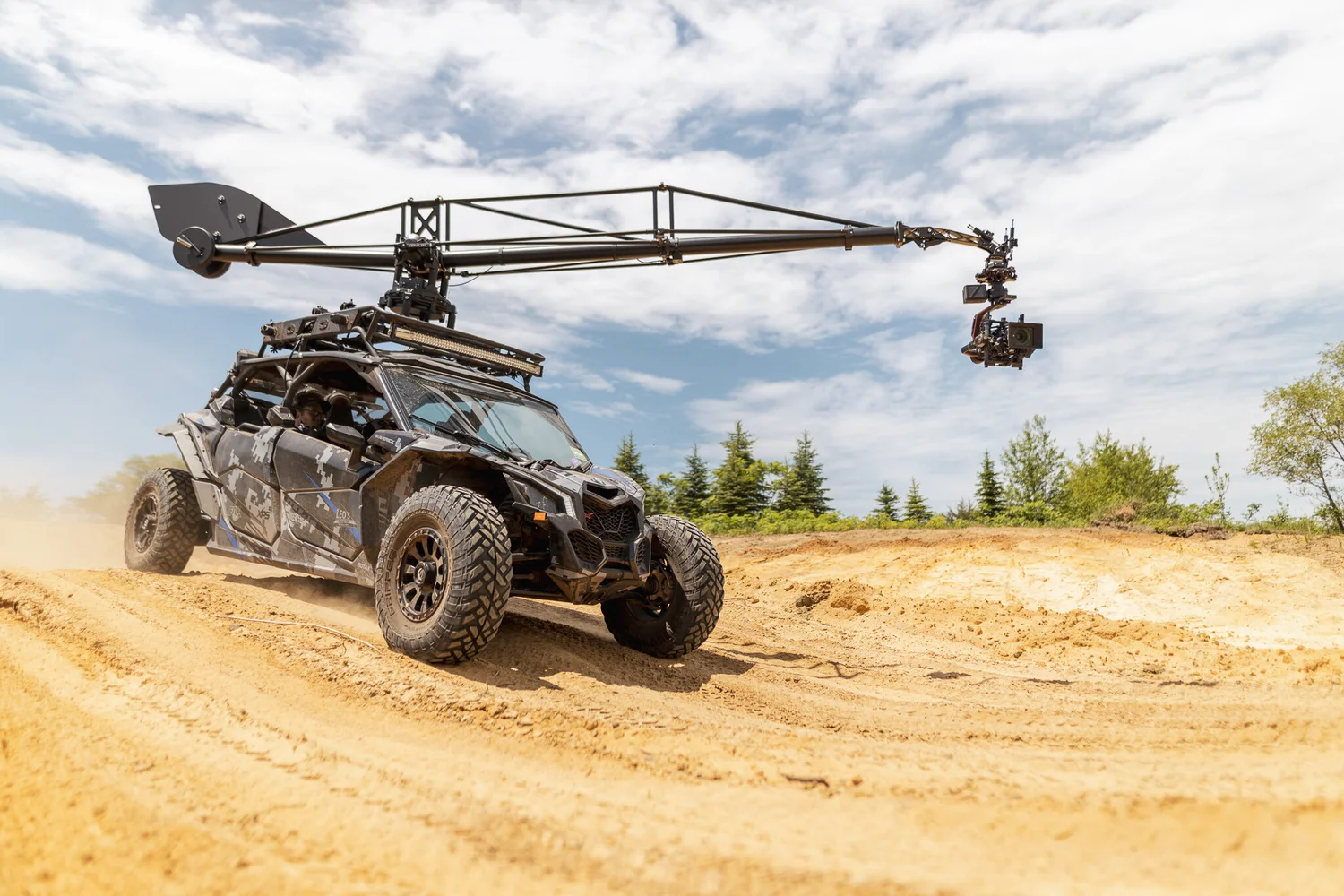

Our Radical is built on a Can-Am Maverick RR Turbo with the Titan LT remote head. The interior has three SmallHD Cine 13 4K monitors and a 5" reference monitor for the driver. It is ideal for heavy off-road situations and can also be used in public areas with a permit.

  • Can-Am Maverick RR Turbo
  • Motocrane Radical Arm (12 ft)
  • Titan LT Remote Head (40 lb payload)
  • COMMAND Console
  • 3x SmallHD Cine 13 4K Monitors
  • 5" Driver Reference Monitor
  • Reach: 12 ft (3.65 m)
  • Arm payload: 35 lb standard, up to 45 lb (20 kg) with HEAVYLIFT
  • Vehicle speed: Rated for 90+ mph (145 km/h)
  • Swing: Full 360° in under 6 seconds
  • Stabilization: INS 2 Advanced Stabilization (6-axis INS sensor on the boom)
  • Mounting: 1-1/2" TUV-certified speed rail clamps
  • Transport: Modular flight case set, each case under 70 lb
  • Controls: COMMAND Console with full-colour touchscreen
  • Weather rating: IP65
  • Remote head: Titan LT (40 lb payload)
  • Vehicle: Can-Am Maverick RR Turbo
