The Black Arm is a mechanical 3-axis dampening hard-mount system ideal for attaching gimbals to vehicles like cars, ATVs, boats, snowmobiles and dollies.
operator required

Black Arm

The Black Arm is a hard-mount three-axis stabilizing system made for a variety of camera gimbals. Designed to absorb large and small movements, high-frequency fluctuations from road noise and engine vibration.

The damping action of all axes; vertical, tilt, and roll are created by custom-made hydraulic dampers that are fully adjustable. A 22-step knob enables you to precisely dial in the amount of damping you need for your shot.

With a weight range of 11-70lbs the Black Arm can accommodate a variety of remote heads including the Titan LT, Ronin2, Shotover G1 and many other systems.

Key Features

Black Arm
Mitchel to Boom Attachement
Tranquilizer
100mm Extension
Travel Case

The Black Arm is a hard-mount three-axis stabilizing system made for a variety of camera gimbals. Designed to absorb large and small movements, high-frequency fluctuations from road noise and engine vibration.

The damping action of all axes; vertical, tilt, and roll are created by custom-made actuator hydraulic dampers that are fully adjustable. A 22-step knob enables you to precisely dial in the amount of damping you need for your shot.

With a weight range of 11-70lbs the Black Arm can accommodate a variety of remote heads including the Titan LT, Ronin2, Shotover G1 and many other systems.

  • FlowCine Black Arm

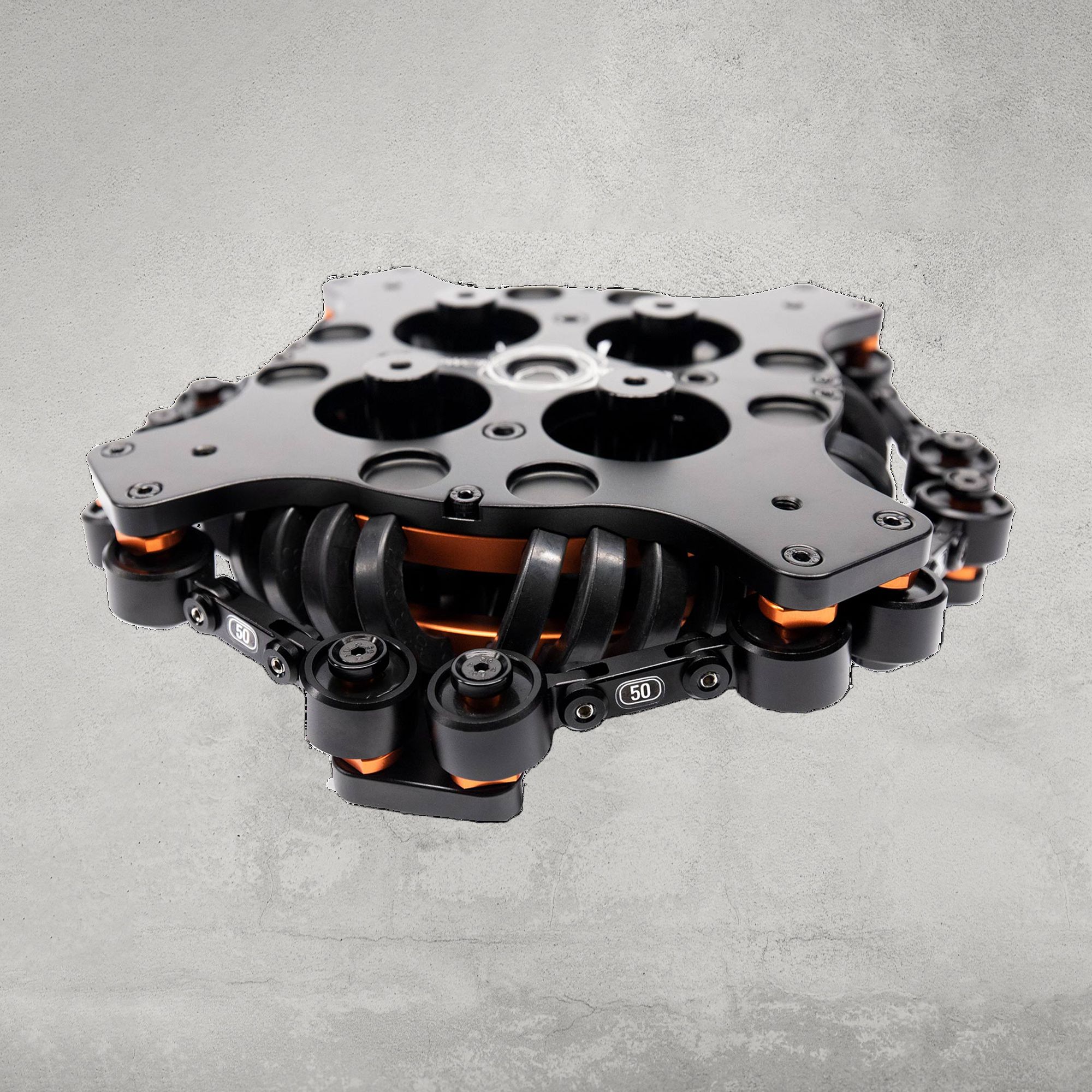

  • Tranquilizer Vibration mount with shore 40, 50, 60 rubber rings
  • 100mm extention
  • Rubber Bumpers
  • Backup Dampeners
  • Travel Case
  • Type: 3-axis hydraulic dampening hard-mount arm (vertical, tilt and roll)
  • Payload: 11–70 lb (5–32 kg)
  • Dampers: 6 custom hydraulic actuator dampers with 22-step adjustment
  • Springs: Four 7.0 mm and four 7.5 mm, single or dual configuration
  • Vibration isolation: Tranquilizer anti-vibration mount with shore 40, 50 and 60 rings
  • Vehicle mount: Clamp for 1.9–2.0" (48–52 mm) speed rail
  • Head mount: Mitchell mount (Mitchell-to-boom attachment); 1/4"-20 and 3/8"-16 hole patterns
  • Compatible heads: Titan LT, Ronin 2, Shotover G1 and more
  • Extension: 100 mm extension included
  • Our build: Toyota Tundra Limited with Titan LT remote head (40 lb payload), 2x SmallHD Cine 13 4K, Cine 7 and a 5" driver monitor
